PE Bottle: Wholesale and Custom Packaging Evaluation Guide





PE Bottle are widely used across global B2B sectors for packaging personal care formulations, household cleaning agents, industrial liquids, and agricultural solutions. For international importers, distributors, brand owners, and OEM procurement managers, selecting the correct container involves rigorous evaluation of material grades, bottle weights, neck finishes, closure compatibility, and resistance to packaged contents.



This guide outlines the critical technical parameters, compliance standards, and evaluation criteria required to prepare an accurate, reliable, and high-performance bulk order specification.

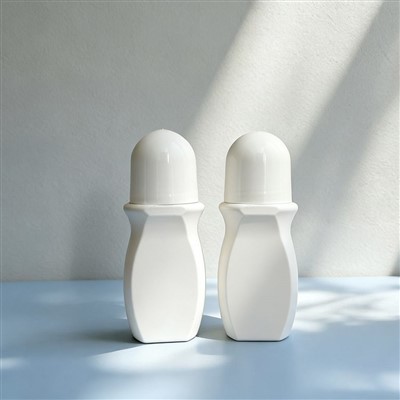

  • Plastic Roller Bottle
    Material: PP/PE plastic. Safe. Non-toxic. Resists acids and alkalis.
    Capacity: 75ml
    Size: Total height: 114.5mm. Diameter: 44.3mm.
    Bottle Shape: Curved waist design....
    read more
  • Plastic Roller Bottles
    Bottle Type: Round top cap + straight body + roller ball screw cap.
    Surface: Blank for printing. Silk screen, hot stamping, or label.
    Sealing: Screw cap with gasket. No leaks, even...
    read more
  • Round Hdpe Bottle
    Material: Bottle: Food-grade PET/PE frosted plastic. Cap: PP.
    Capacity: 60ml
    Bottle Design: Matte frosted finish. Round and chubby shape.
    Cap Type: Push-pull anti-leak flip...
    read more
  • Hdpe Squirt Bottle
    Capacity: 120ml
    Bottle Material: PP / HDPE. Matte milky white finish. Impact resistant.
    Light Blocking: Excellent. Ideal for light-sensitive liquids.
    Mouth: 20mm
    read more

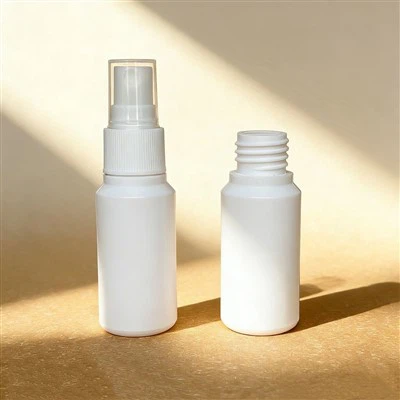

  • PE Spray Bottle
    Capacity: 30ml
    Bottle Structure: Fine mist spray head + straight slanted shoulder body
    Sealing: Screw thread seal. Silicone ring inside the spray head
    Key Benefits: Impact...
    read more
  • 50ml Roll On Bottles
    Capacity: 50ml
    Bottle Material: Food-grade PE plastic. Resists acids, oils, and alcohol.
    Roller Ball Parts: Food-grade PP roller ball + seal core. Smooth rolling.
    Outer Cap:...
    read more
  • Hdpe Capsule Bottle
    Capacity: 60ml black light-blocking HDPE capsule bottle
    Material: Food-grade / pharmaceutical-grade HDPE. Black, light-blocking.
    Cap: Standard screw cap with vertical anti-slip...
    read more
  • Nasal Pump Spray Bottle
    Material: Bottle: HDPE. Spray head: PP + silicone. Outer cap: PP.
    Capacity: 70ml
    Bottle Size: Height: 102mm. Diameter: 33.7mm.
    Spray Type: Directional nasal spray. Fine...
    read more

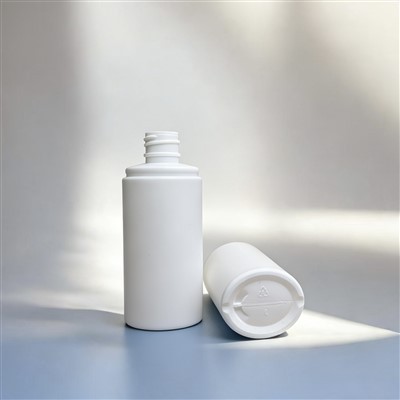

  • Pe Plastic Bottle
    Material: Bottle: HDPE. Spray head and outer cap: PP/PE.
    Common Capacity: 80ml
    Bottle Size: Height: 97.6mm. Diameter: 34.4/43.3mm.
    Bottle Mouth Diameter: 20mm
    read more

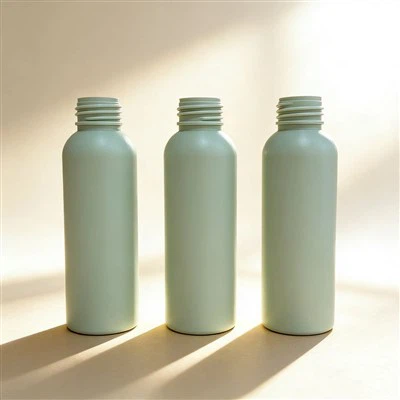

  • PE Round Spray Bottle
    Capacity: 100ml
    Spray Head: Push-type fine mist spray head with transparent dust cover
    Bottle Shape: Straight round shoulder body with standard outer thread
    Sealing: Thread +...
    read more

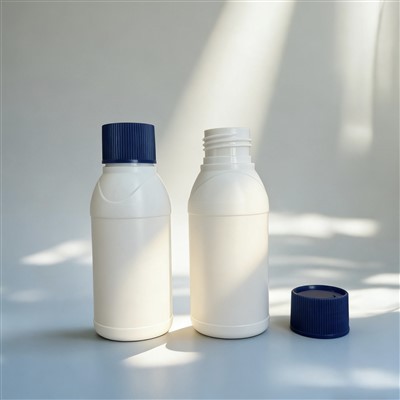

  • Hdpe Bottles For Pesticides
    Material: HDPE. Resists acids and corrosion.
    Capacity: 100ml (Custom 50-150ml available).
    Bottle Design: Ergonomic curve with a thickened bottom.
    Cap: Blue vertical line screw...
    read more
  • PE Roller Ball Dispenser Bottle
    The PE Roller Ball Dispenser Bottle is our specialized solution for "hands-free" topical application. We’ve engineered the "contoured waist" design to fit perfectly in the palm of the hand,...
    read more
First 12 Last

Product Overview and Applications


Polyethylene (PE) is a thermoplastic widely utilized in blow-molded plastic packaging. High-density polyethylene (HDPE) and low-density polyethylene (LDPE) are the two primary resin variants, each offering distinct levels of structural rigidity, flexibility, and chemical resistance.



PE bottles serve diverse commercial applications:

Personal care: Shampoo, conditioner, body wash, lotion, and liquid soap.



Household cleaning: Laundry detergents, surface cleaners, disinfectants, and compatible cleaning solutions.



Industrial packaging: Lubricants, process liquids, and specific chemical formulations.



Garden and agricultural products: Liquid fertilizers, pesticides, and horticultural concentrates requiring application-specific compatibility assessments.



General liquid packaging: Formulations requiring rigid containers or squeezable dispensers, depending on the selected PE grade and container design.



The selection of a suitable bottle depends heavily on chemical formulation, active concentration, filling temperature, storage conditions, and target shelf life. Chemical and physical compatibility testing must be completed prior to finalizing procurement specifications.



Bottle Types and Material Options

30ml PE Slanted Shoulder Straight Sprayer

HDPE Bottles

High-density polyethylene (HDPE) provides higher tensile strength, greater rigidity, and superior chemical resistance compared to LDPE. It is commonly specified for bottles requiring a firm structure, high stacking strength, and drop-impact resistance.



Typical applications: Household cleaning products, personal care liquids, and industrial formulations.



Key evaluation factors: Bottle weight, wall thickness profile, container geometry, filling-line conditions, and closure torque requirements.

LDPE Bottles

Low-density polyethylene (LDPE) offers greater flexibility, softness, and resilience. It is predominantly selected for squeeze bottles, dropper bottles, and controlled dispensing applications.



Typical applications: Reagents, adhesives, targeted personal care items, and topical liquid dispensers.



Key evaluation factors: Resin grade, wall thickness, container geometry, and tactile squeeze recovery.

Big Cover 120ml PE Squirt Bottle
Pe Plastic Bottle

Bottle Shapes and Standard Configurations

Common container configurations include round, oval, rectangular, flat-sided, and specialized squeeze designs, subject to supplier mold availability.



Evaluation criteria: Filling-line compatibility, warehouse storage efficiency, labeling surface area, retail shelf presentation, and transport durability.



Custom shapes require dedicated tooling investment and extended development lead times.



Technical Specifications and Closure Options



Prior to requesting a formal commercial quotation, buyers should define the exact container parameters. If a specification is not yet established, providing a reference sample or target application helps suppliers recommend viable standard configurations.



Specification Parameter

Technical Detail to Confirm

Material Grade

HDPE, LDPE, or specified specialty PE resin

Nominal Capacity

Required fill volume in mL or L

Bottle Weight

Target weight in grams

Dimensions

Height, width, depth, and base dimensions

Neck Finish

Neck diameter, thread profile, and finish dimensions (e.g., 24/410, 28/400)

Wall Thickness

Target or minimum thickness at critical stress points

Bottle Color

Natural, white, black, or custom pantone-matched color

Surface Finish

Gloss, matte, or specialized textured grip finish

Closure Type

Screw cap, flip-top, disc-top, lotion pump, or trigger sprayer

Sealing Requirements

Induction liner, pressure-sensitive liner, inner plug seal, or tamper-evident band

Packaging Method

Bulk packing, poly bags, cartons, or palletized shrink-wrapped shipment



Closure Compatibility



The bottle and closure operate as a single integrated containment system. A closure fitting a neck finish does not automatically guarantee an airtight or leak-proof seal.



Key parameters to confirm prior to mass production:
Neck finish and closure dimension tolerances.



Thread engagement depth and sealing surface design.



Gasket or liner material requirements to prevent liquid leakage and gas transmission.



Application torque specifications to ensure consistent capping on automated filling lines.



Chemical compatibility between the closure assembly and packaged formulation.



Leakage resistance under accelerated storage, thermal cycling, and transport conditions.



Pumps and trigger sprayers require additional verification of dip tube length, product viscosity compatibility, stroke discharge volume, and spring-mechanism durability.

Plastic Roller Bottle



Material Compatibility and Customization

Material compatibility is vital when packaging aggressive chemicals, concentrated cleaners, low-pH formulations, or active personal care products.

Buyers must confirm formulation chemistry, active concentration, filling temperature, storage temperature ranges, and expected shelf life. For demanding applications, laboratory compatibility testing must be executed using the actual formulation and proposed bottle-and-closure combination.

Customization Options
Container capacity, physical dimensions, geometric shape, and target weight.

PE resin selection and masterbatch colorants, subject to supplier availability.
Bottle opacity and specialized UV-barrier additives.
Neck finish modifications and dedicated closure components.
Surface decoration, including silk screening, hot stamping, labeling, and sleeve application.
Custom mold development and proprietary packaging geometries, subject to manufacturing feasibility.
For custom projects, buyers must verify mold ownership terms, tooling amortization costs, sample lead times, production minimum order quantities (MOQ), and formal sample approval protocols before placing a bulk order. Any modification to resin grade, bottle weight, or tooling requires re-evaluation against the approved specification.



Quality Control and Compliance


Quality standards for wholesale and OEM procurement must be established prior to manufacturing. Inspection criteria should reflect destination-market regulations and the buyer's internal filling and distribution processes.

Relevant quality verification procedures include:
Visual inspection for contamination, flash, sink marks, short shots, and molding inconsistencies.
Container weight verification against agreed nominal specifications (typically within a plus or minus 5 percent tolerance).
Dimensional inspection of critical features, including neck finish integrity and thread tolerances.
Closure fit, thread torque testing, and sealing verification.
Leak testing using vacuum decay or pressure testing methods under agreed acceptance criteria.
Drop testing and top-load compression performance evaluations under simulated transport conditions.
Buyers should confirm inspection protocols, defect classification limits, sampling frequencies, and the availability of batch-specific inspection reports or retained samples.



Regulatory Compliance Documentation



Regulatory requirements vary by destination market and product category. Packaging intended for food contact, cosmetics, pharmaceutical excipients, household chemicals, and hazardous materials is subject to distinct statutory obligations.



Before ordering, confirm whether the project requires material safety declarations, FDA or EU food-contact compliance statements, migration test reports, REACH or RoHS declarations, or chemical resistance records. Compliance must be assessed against the complete assembly (bottle, masterbatch pigments, and closure components). A generic statement confirming that a container is made of PE does not establish regulatory compliance for specialized applications.

PE Round Spray Bottle



Bulk Supply and Ordering



A comprehensive specification enables accurate supplier quotation comparisons and minimizes engineering changes after tooling or production commences.
Information required for a formal RFQ (Request for Quotation):
Required fill capacity and container shape.
Material grade preference and color requirements.
Target bottle weight and critical external dimensions.
Neck finish specification and required closure type.
Surface decoration, labeling, and secondary packaging requirements.
Initial order quantity and projected annual demand.
Intended application and destination country.
Delivery schedule requirements and compliance documentation needs.
For custom tooling projects, buyers must also confirm mold fabrication terms, pre-production sample availability, and critical approval parameters.



Pre-Order Commercial Checklist
MOQ: Confirm the minimum order quantity for standard versus custom resin grades and decorative options.



Pricing: Request an itemized quotation separating container unit price, closure cost, tooling investment, decoration fees, and applicable Incoterms (e.g., FOB, CIF, EXW).



Samples: Confirm pre-production physical sample availability, courier logistics, and formal sign-off procedures for dimensions, aesthetics, and seal performance.



Lead Time: Verify production scheduling, sample approval turnaround, packaging preparation, and freight transit timelines.



Repeat Orders: Utilize an approved master specification sheet and golden reference sample to maintain dimensional and aesthetic consistency across subsequent purchase orders.





Frequently Asked Questions



Q: What is the fundamental difference between HDPE and LDPE bottles?

A: HDPE offers greater rigidity, higher tensile strength, and superior chemical resistance, making it ideal for general-purpose liquid packaging and bulk chemical storage. LDPE is softer, highly flexible, and primarily selected for squeeze bottles, dropper dispensers, and targeted application containers.

Q: Are PE bottles universally suitable for chemical packaging?

A: No. While many PE containers accommodate mild chemicals, compatibility depends strictly on chemical composition, active concentration, ambient storage temperature, and exposure duration. The bottle, closure gasket, and sealing liner must be evaluated collectively as a single containment system through laboratory testing prior to commercial production.

Q: What technical PE bottle specifications must be confirmed prior to ordering?

A: Critical parameters include material grade, nominal fill capacity, target bottle weight, overall dimensions, neck finish profile, closure type, color specifications, and bulk packaging format. Filling-line operating parameters and destination-market compliance standards should also be established.

Q: Can PE bottles be fully customized in shape, color, and closure type?

A: Yes. Customization options encompass container geometry, capacity, weight, pantone color matching, neck finishes, matching closures, screen printing, and labeling. Custom designs require tooling investment, sample sign-off, and adherence to specific production minimum order quantities.

Q: How can buyers minimize the risk of leakage and packaging failure?

A: Buyers should specify a fully compatible bottle and closure combination, define appropriate sealing liner grades, and validate packaging performance through rigorous drop, leak, and thermal testing. Simulated transport testing and strict adherence to approved production specifications prevent structural failures.

Q: What data must be provided to obtain an accurate bulk PE bottle quotation?

A: Provide target capacity, resin specification, bottle weight, dimensional envelopes, neck finish type, closure requirements, color code, order volume, destination port, and intended application. Supplying a technical drawing or physical reference sample significantly accelerates accurate supplier pricing.
